Description

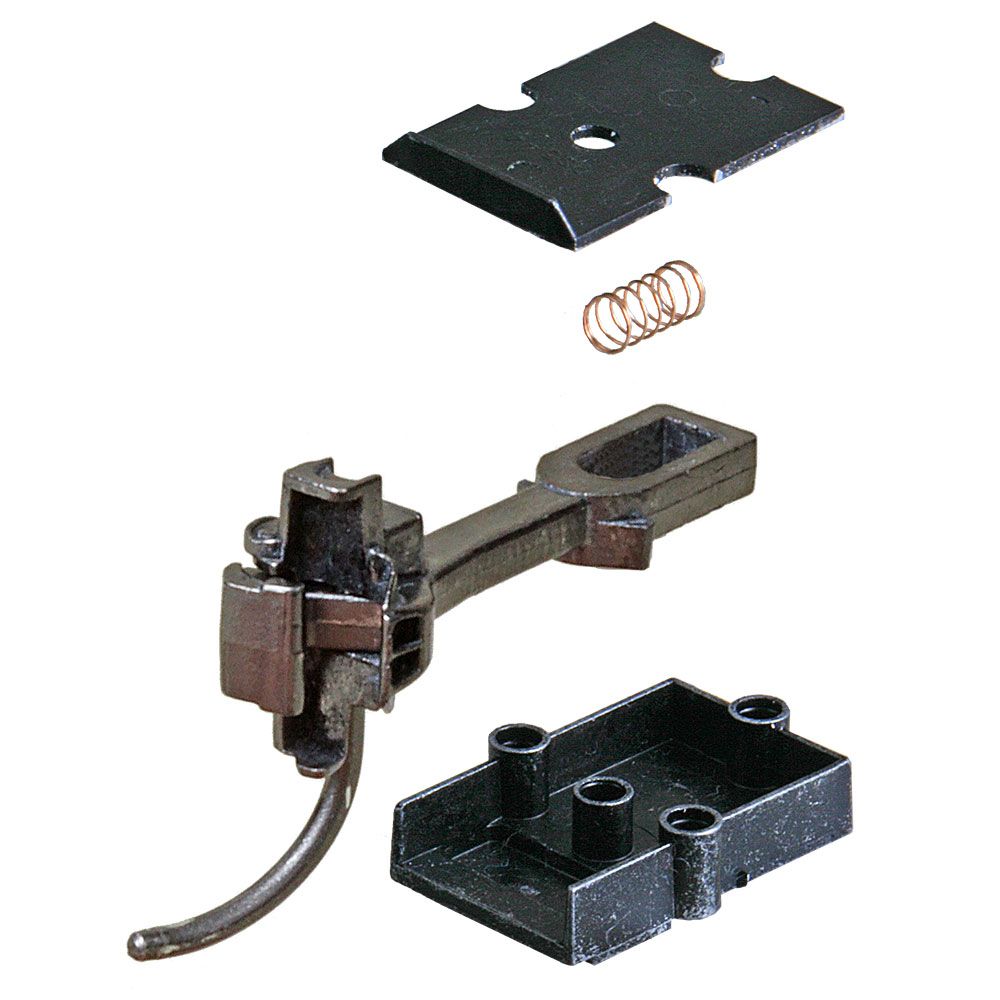

#1744 "SE" Top and Bottom Shelf Long Coupler Centerset Metal Couplers with Plastic Gearboxes - Black - O Scale
 |
 |
This industry-leading coupler features New Generation AAR Type "SE" Top and Bottom Shelf Head Long Centerset Metal Couplers, and #850 O Scale centering spring, and comes complete with Plastic Gearboxes and lids. The #1744 Metal Coupler may be mounted with the included #817 Plastic Gearbox or #818 Metal Gearbox (sold separately), #819 Extended Metal Gearbox (sold separately).
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
Two pair per package
Made in the U.S.A.
O-Scale
New Generation AAR Type "E" "Prototype" Head:
- Simple Drop in Design
- Trouble Free Operation
- Hidden Knuckle Spring
- AAR Type "E" Coupler Style
- Compatible with Kadee® O-Scale Couplers
- World-Renowned Quality & Performance
- They just Last & Last & Last...
Package Includes:
- (4) Each #1744 O Scale "SE" Top and Bottom Shelf Long Coupler Centerset Metal Couplers - Long Centerset Shank
- (4) Each #817 Plastic Gearboxes & lids
- (5) Each #850 O Scale Centering Springs
#1744 Metal Coupler Features:
| Material | - Metal |
| Shank Length | - Long (63/64") (Knuckle pulling face to center hole of Draft Gearbox) |
| Coupler Offset | - Centerset |
| Centering Spring | - #850 O Scale Centering Springs |
| Head | - New Generation AAR Type "E" "Prototype" Head |
| Works In Place of | - #746, or 1746 O Scale Long Centerset Shank Couplers |
| Works With | - #817, #818, #819 Draft Gearboxes |
#817 Plastic Draft Gearboxes & Lids Features:
| Material | - Plastic |
| Dimensions | - 25/32"L x 1/2"W x 7/32"H |
| Works With | - #740, #742, #745, #746, #747, #800, #801, #804, #805, & #816 Couplers |
Mounting Specifications:
| Mounting Height | - 25/32" |
| Centerline | - 1 1/16" |
| Trip Pin Height | - 1/16" |
| Mounting Holes | - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) |
